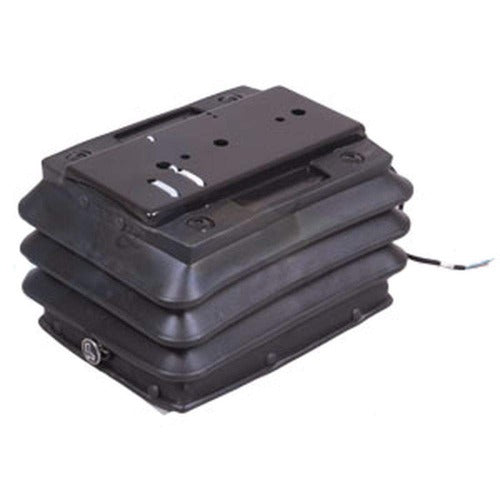

12v Narrow Base Tractor Seat Air Suspension

$518.95
Unit price per

Shipping calculated at checkout.

Seat Air Suspension (Narrow Base) for JD, AC, IH, FD, NH, MF, IR, Cat, CIH

For Multiple Applications Including But Not Limited To:

Agco GT55 GT65 GT75

Allis-Chalmers 6670 6680 6690

Case IH 75C 85U 90 95 95C 95U JX55 JX60 JX70 JX75 JX80 JX85 JX90 JX95

Ford / New Holland TD5030 TD5050 TD80D TD95D TN55D TN55S TN65D TN65F TN65S TN65V TN70D TN70S TN75D TN75F TN75S TN75V TN90F

John Deere 5083E 5093E 5101E 5220 5225 5320 5325 5420 5425 5520 5525 5603 5625 6110 6110L 6120 6120L 6200 6200L 6210 6210L 6215 6220 6220L 6230 6300 6300L 6310 6310L 6320 6330 6400 6400L 6403 6405 6410 6410L 6415 6420 6420L 6430 6500 6500L 6510L 6603 6605 6615 6715 7130 7230 7330

Massey Ferguson 2220 2650 2660 2670 2680 471 481 491 492 573 583 593 596

White 6065 6085

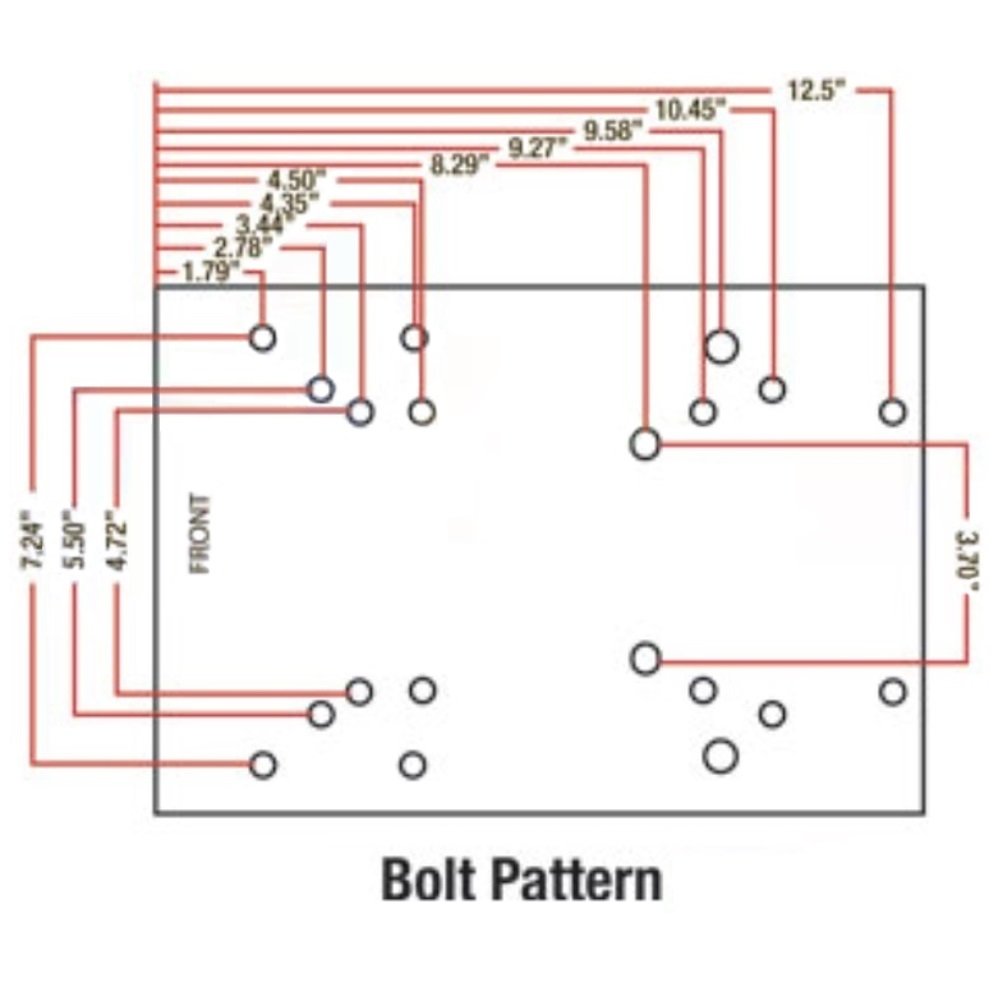

Use with Slide Tracks Item # SH117 on top to mount seat with a 7-1/4" bolt mounting Width.

Seat Air Suspension 12v 9a Max

Suspension Stroke 4" / 100mm

Weight Adjustment 110 - 330 lbs. / 50 - 150kg

Please note some applications may require to drill new holes in existing mounting platform, or fabricate brackets to install this seat suspension.

This Seat Suspension will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.

Item # AS108

^{SEN10-0036, A-MA1C12-AI, SEN100036, A-MA1C12-A MA1 MS300 pneumatic}
