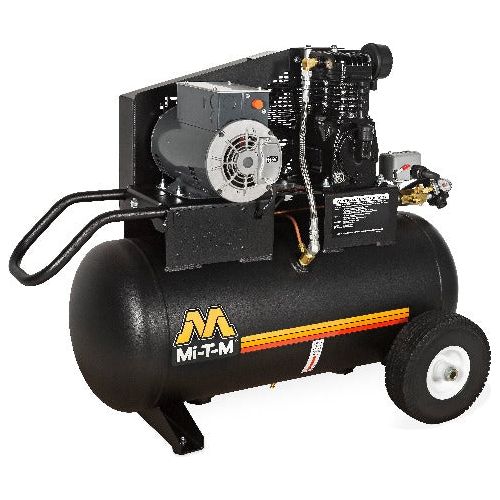

20 Gallon Single Stage Portable Compressor (1p 120v) AM1-PE02-20M
Designed for the tough jobs where a lot of air capacity is required to run multiple air tools. Portable enough to transport from jobsite to jobsite it easily maintains the power needed for large projects.
Compressor Pump: Cast iron Single Stage compressor · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Motor: Auto start/stop - continuous run optional · Thermal overload motor protection
Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 10-inch flat-free tires
Components: Regulator and two gauges for tank and outlet pressure · 10-inch fly wheel · Manual drain valves for proper maintenance · Industrial-grade pressure switch
CFM @ 90 PSI 9.2
Horsepower/Motor 2.0 HP, 120V, 18.8A

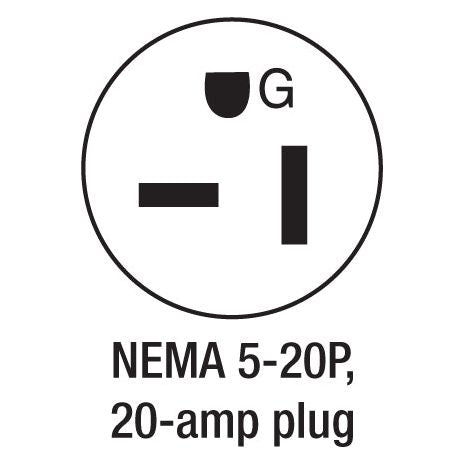

Plug Type NEMA 5-20P
Length 40.00 in. Width 24.00 in. Height 32.00 in. Weight 203 Lb
