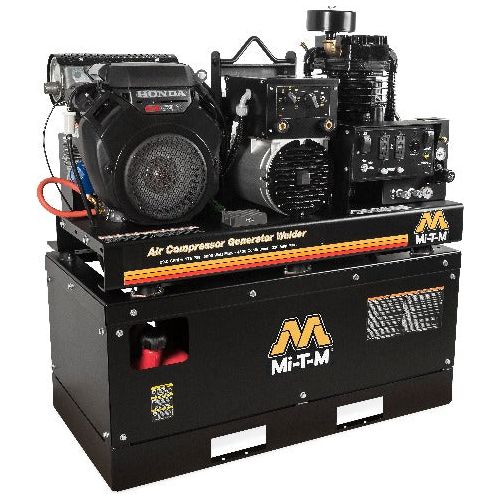

20 Gallon Two Stage Compressor / Generator / Welder (Honda) AGW-SH22-20M
Maximum performance in a single machine, the industrial air compressor, generator, welder combination can tackle any job in the shop or in the field.
Compressor Pump: Cast iron Two Stage compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder: Amperage selection switch, 170A or 220A maximum
Frame: Powder coated ASME receiver tank · 14-gauge four-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch fly wheel
AGW Series Operation
Generator Mode: AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode: DC current only · Engine must be running full throttle · Selector switch must be set to full throttle
All models sold in California are required to have the AX-0080 CARB compliant fuel tank.
Equipped with 150-PSI maximum rated regulator.
Limited Warranties:
- 2 Year Alternator
- 2 Year Pump Exchange
- 3 Year Honda Engine
Frequency / Voltage: 60Hz/120V/240V
Max Amps (120V/240V): 41.5 / 20.8
Cont. Amps (120V/240V): 37.5 / 18.8
Receptacles: (2) 120V, 20A GFCI Duplex - 120V/240V, 20A Twist Lock
Duty Cycle (10 Min. Run Time): 220A @ 40%, 190A @ 60%, 150A @ 100%
DC Voltage: 50-220A Working Range
10 Gallon Fuel Tank Capacity
Engine 688cc 22.1 Hp V-Twin Honda OHV, w/ Electic Start
Maximum Flow Capacity 29.0 CFM @ 175 PSI
Wattage Surge 5000 Watts - Continuous 4500 Watts
Length 47.00 in. Width 24.00 in. Height 50.00 in. Weight 803 lb.
