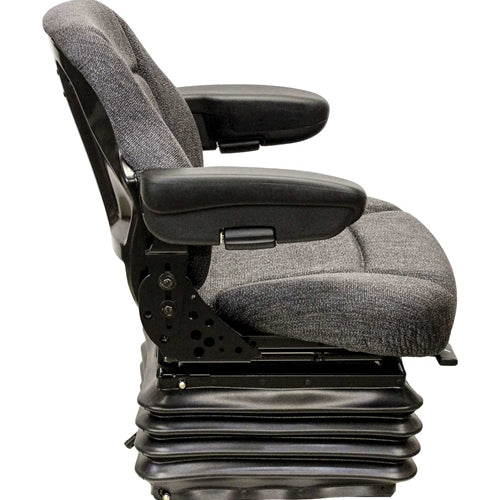

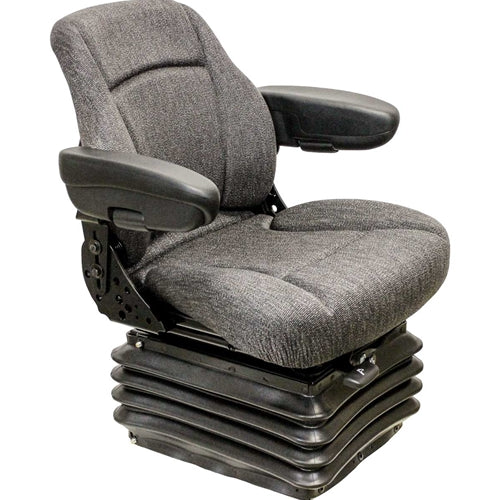

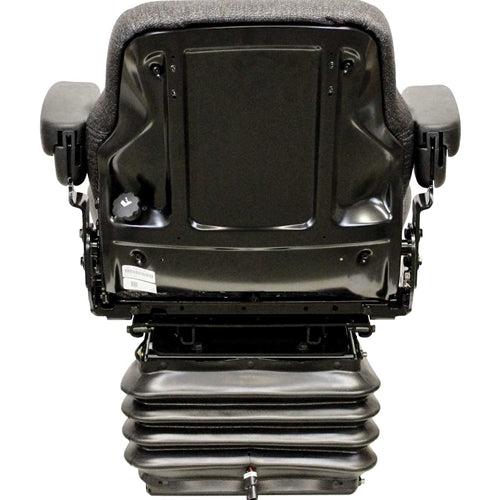

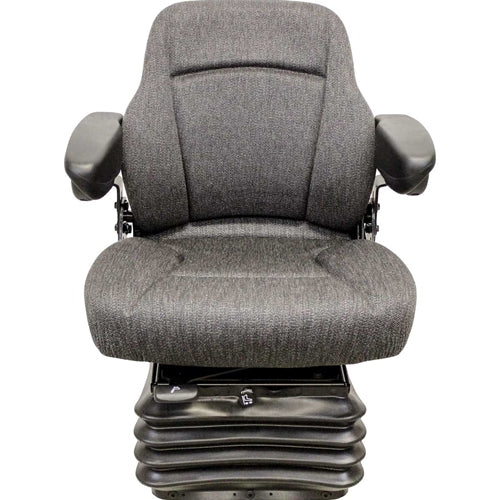

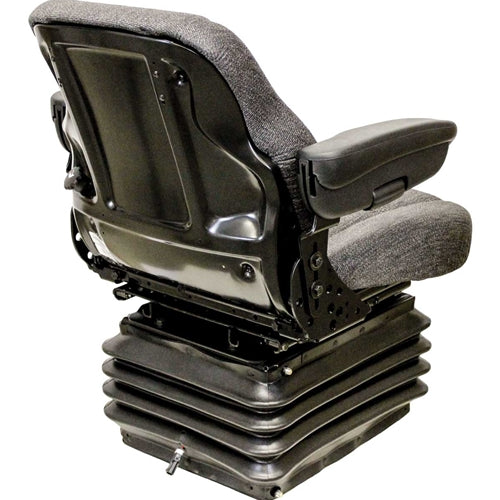

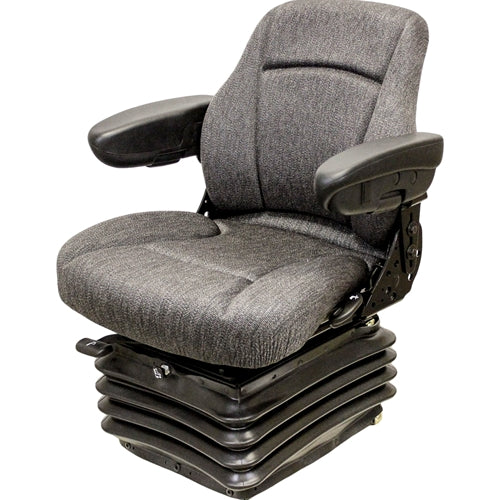

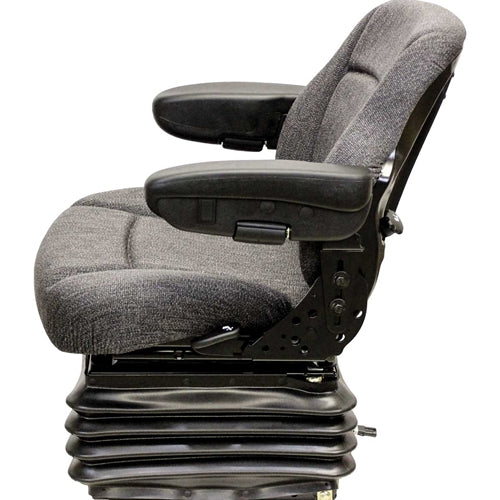

24v Heavy Duty Excavator / Dump Truck Seat w/ Air Suspension

Heavy Duty Suspension Seat For Flat Mounting Surface (Some Assembly Required) for JD, AC, IH, FD, NH, MF, IR, Cat, CIH

For Multiple Applications Including But Not Limited To:

John Deere 670C, 670CH, 672CH, 670D, 672D, 770C, 770CH, 772CH, 770D, 772D, 870D, 872D, TC44H, 444H LL, TC54H, 544H LL, TC62H, 624H LL, 444H, 444J, 544H, 544J, 624, 624H, 644H, 644J, 724J, 744H, 744J, 824J, 540G, 540G III, 548G II, 548G III, 640G, 640G II, 640H, 648G, 648G II, 648G III, 648H, 748G, 748G II, 748G III, 748H, 848G, 848H

This Seat & Suspension is a very comfortable, high-quality replacement seat and air suspension assembly. The heavy-duty air suspension has an integrated 12 or 24-volt compressor, that will ensure a comfortable ride.

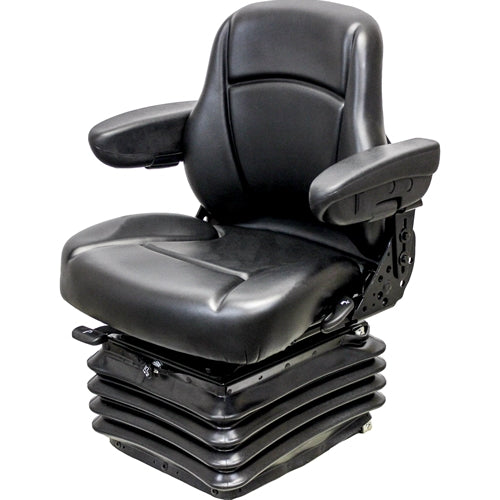

Durable fabric or vinyl covering
Plush cushions to ensure operator comfort
Reclining backrest with tapered back support
Adjustable mechanical lumbar support to help prevent lower back pain
Adjustable fold-up armrests

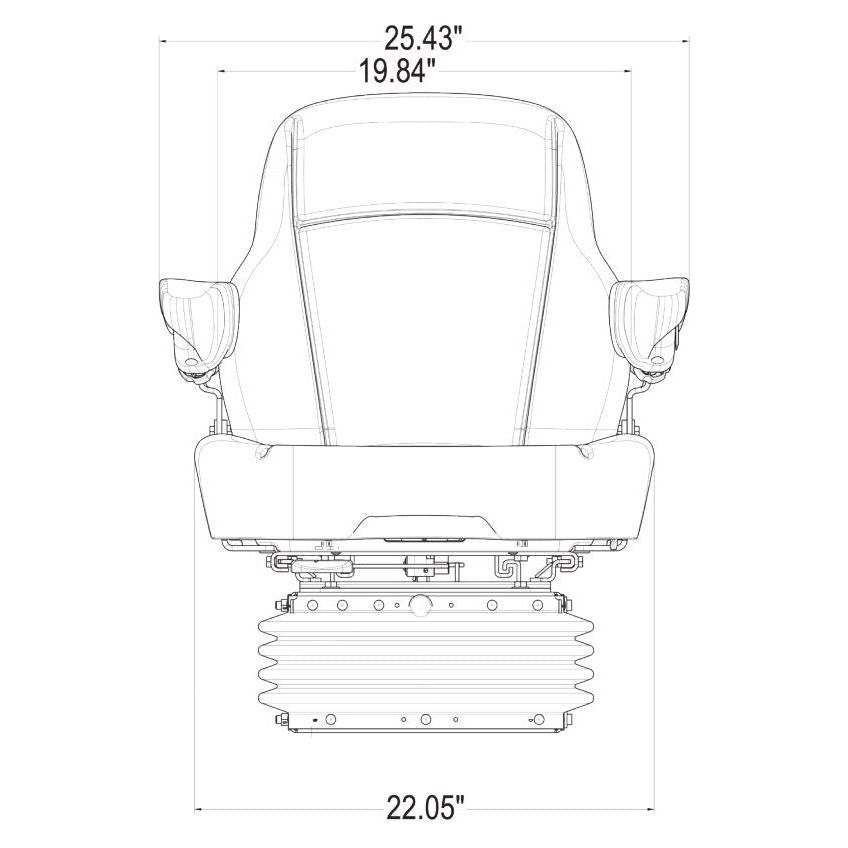

Seat cushion width of 21.5"

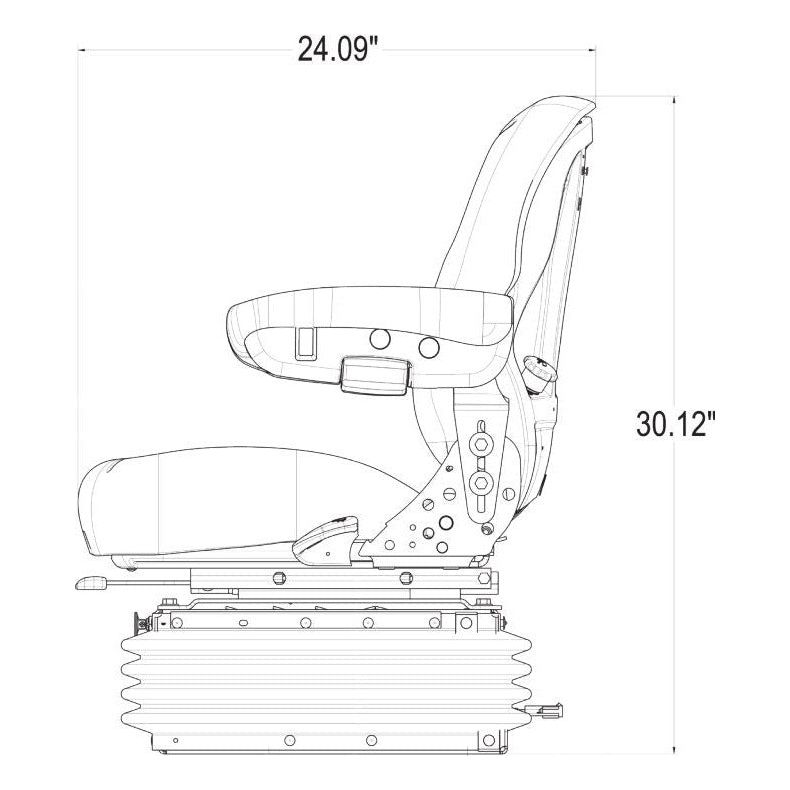

Seat back height of 19"
Heavy duty side rails provide fore/alt adjustment
24-Volt air suspension with 3.27" suspension stroke to reduce the impact of extreme shocks to the body
99 - 320 lb suspension weight adjustment
Durable suspension cover to keep components free of dirt and dust

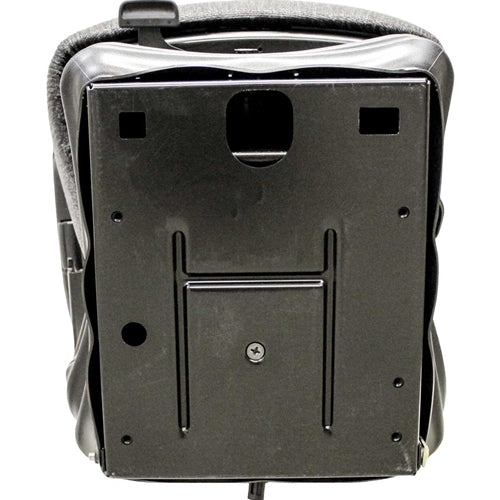

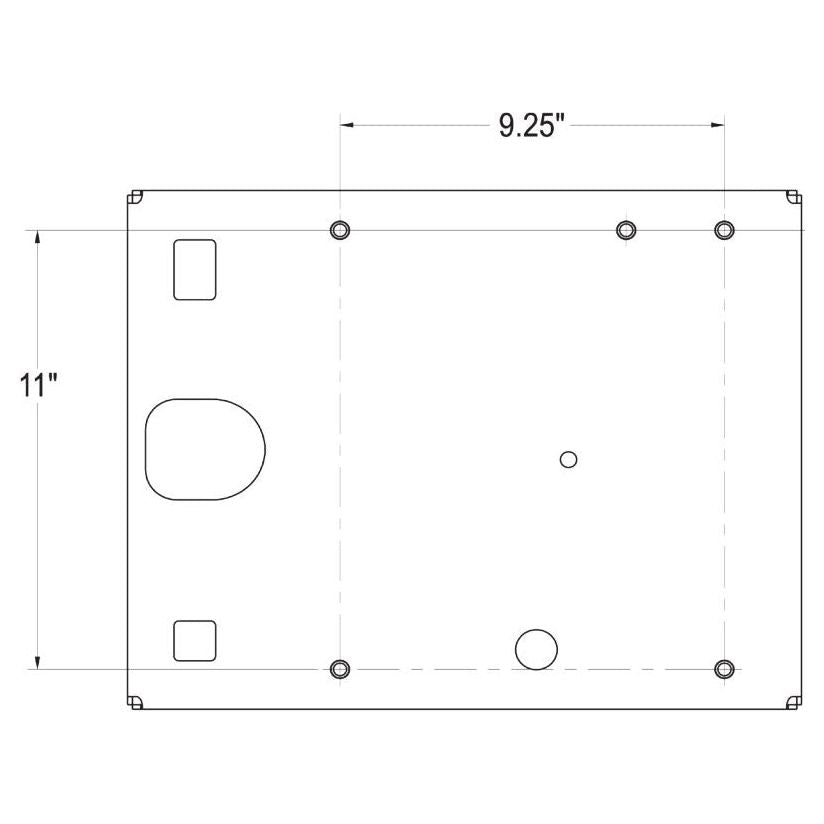

Bolt Pattern (W x L - 11" x 9.25")

For Armrest Use Item # AR188

Some Applications may require drilling, or Adapter Plate to mount seat.

This Seat will fit a lot of models of CONSTRUCTION AND INDUSTRIAL EQUIPMENT.

Item # AS165
