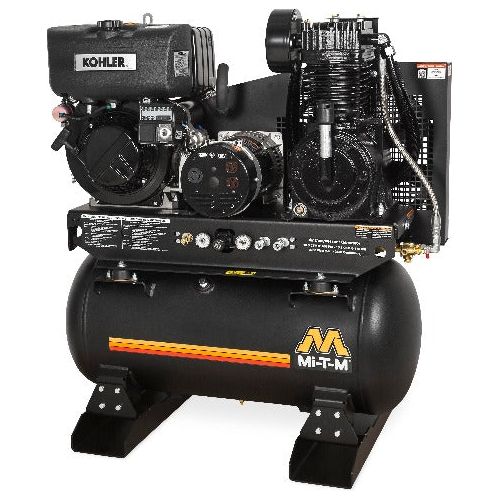

30 Gallon Two Stage Air Compressor (Diesel) Kohler AG2-SKD9-30M
A reliable Kohler diesel engine powers this beast. Developed for the agricultural and construction industries, this model can take anything you throw at it. Mount it on the back of a service truck and take it to the most remote locations to get big jobs done.
Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · (2) NEMA 5-20R 120V, 20A and (1) NEMA L6-20R 240V, 20A receptacles
Engine: Electric start – battery, box and cables not included · Glow plug equipped for easy starting in cold temperatures
Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 ½-inch fly wheel · Quality pilot valve unloader
Equipped with 150-PSI maximum rated regulator.
Limited Warranties:
- 2 Year Alternator
- 2 Year Pump Exchange
- 3 Year Kohler Engine
CFM @ 90 16.4
CFM @ 175 15.7
Alternator Max. Output 3000 watts
Generator with Compressor Load Continuous 2300 watts
Generator without Compressor Load 2750 watts
Engine 9.1 Hp Kohler Diesel CH440 OHV
Tank Size 30-gallon
Length 41.00 in. Width 23.00 in. Height 47.00 in. Weight 489 Lb
