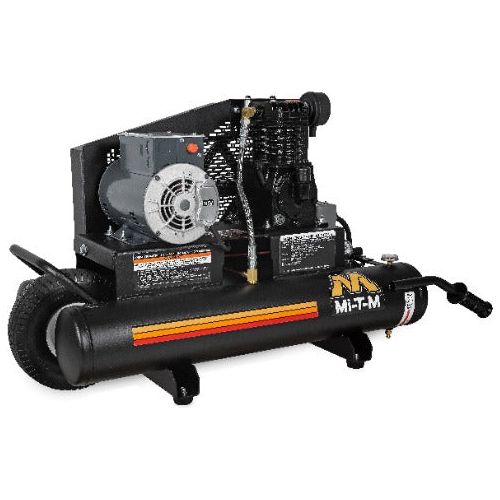

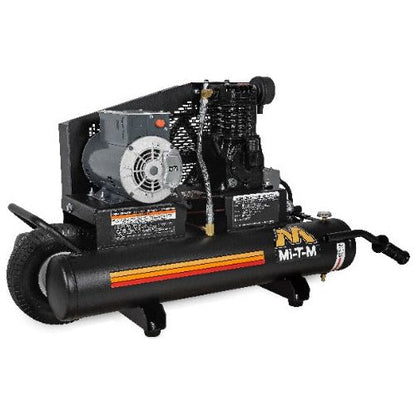

8 Gallon Single Stage Portable Compressor (1p 120v) AM1-PE02-08M
This popular 8-gallon electric air compressor features advanced technology and performance on any jobsite where electricity is available. Power everything from grinders to nail guns.
Compressor Pump: Cast iron Single Stage compressor · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Motor: Auto start/stop - continuous run optional · Thermal overload motor protection
Frame: Powder coated twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 10-inch flat-free tire
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · Industrial-grade pressure switch · 10-inch fly wheel · Start/stop control set at 95 to 125-PSI (Not on continuous run models)
CFM @ 90 PSI 9.2
Horsepower/Motor 2.0 HP, 120V, 18.8A

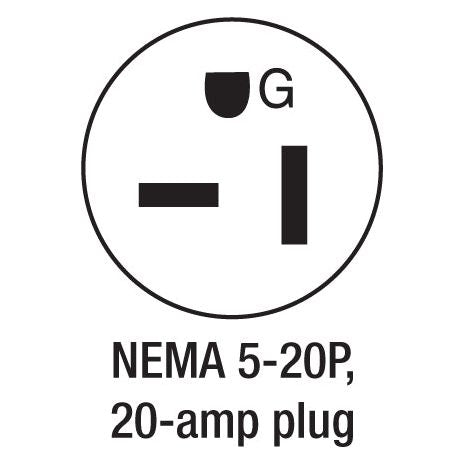

Plug Type NEMA 5-20P
Length 44.50 in. Width 18.50 in. Height 25.00 in. Weight 183 Lb
