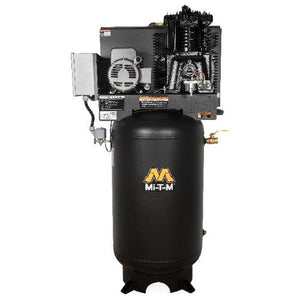

80 Gallon Two Stage Air Compressor (1p 230v) ACS-23105-80VM

$7,369.95
Unit price per

Shipping calculated at checkout.

The M Series air compressors are a great solution for the most demanding industrial applications. Available in many motor configurations and with either vertical or horizontal tank options.

Compressor Pump: Cast iron Two Stage compressor pump · Splash lubricated · Stainless steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor: Industrial low RPM motor · Magnetic start for thermal overload protection

Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Limited Warranties:

1 Year Electric Motor
2 Year Pump Exchange

CFM @ 175 PSI 18

Horsepower/Motor 5.0 HP, 230V, 1Ø, 23.0A

Pump RPM 860

Tank Size 80 gallon

Bolt Down (L x W) 15.63 x 15.63 in.

Length 33.00 in. Width 25.00 in. Height 73.00 in. Weight 544 Lb
