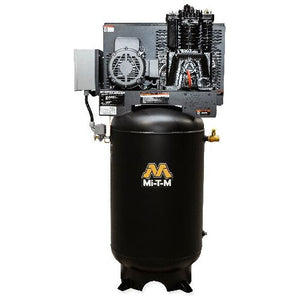

80 Gallon Two Stage Air Compressor (1p 230v) ACS-23175-80V
The M Series air compressors are a great solution for the most demanding industrial applications. Available in many motor configurations and with either vertical or horizontal tank options.
The vertical 80-gallon air compressors can be installed out of the way in workshops and service bays where compressed air is a required utility.
Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor: Industrial low RPM motor · Magnetic start for thermal overload protection
Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard
Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer
Limited Warranties:
- 1 Year Electric Motor
- 2 Year Pump Exchange
CFM @ 175 PSI 23.5
Horsepower/Motor 7.5 HP, 230V, 1Ø, 31.0A
Pump RPM 1250
Tank Size 80 gallon
Bolt Down (L x W) 15.63 x 15.63 in.
Length 33.00 in. Width 25.00 in. Height 73.00 in. Weight 594 Lb
