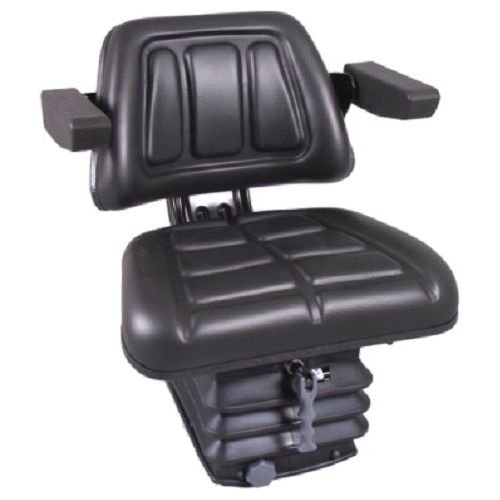

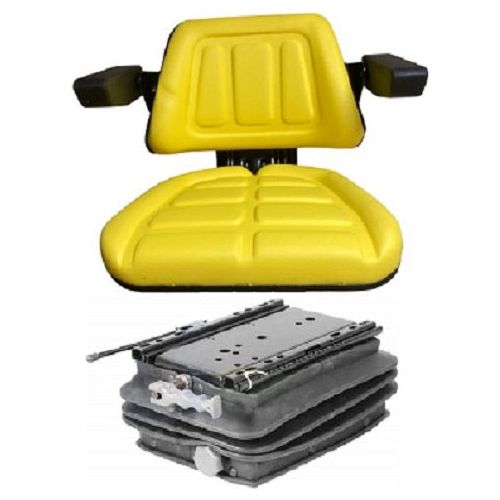

Compact Tractor Fork Lift Lawn Mower Loader Seat w/ Suspension
Seat With Suspension & Armrest for JD, AC, IH, FD, NH, MF, IR, BC, Cat, CIH
For Multiple Applications Including But Not Limited To:
Agco GT55 GT65 GT75
Allis-Chalmers 6670 6680 6690
Case IH 75C 85U 90 95 95C 95U JX55 JX60 JX70 JX75 JX80 JX85 JX90 JX95
Ford / New Holland TD5030 TD5050 TD80D TD95D TN55D TN55S TN65D TN65F TN65S TN65V TN70D TN70S TN75D TN75F TN75S TN75V TN90F
John Deere 5083E 5093E 5101E 5220 5225 5320 5325 5420 5425 5520 5525 5603 5625 6110 6110L 6120 6120L 6200 6200L 6210 6210L 6215 6220 6220L 6230 6300 6300L 6310 6310L 6320 6330 6400 6400L 6403 6405 6410 6410L 6415 6420 6420L 6430 6500 6500L 6510L 6603 6605 6615 6715 7130 7230 7330
Massey Ferguson 2220 2650 2660 2670 2680 471 481 491 492 573 583 593 596
McCormick (2002 & Newer)
White 6065 6085
Ideal for Forklifts, commercial turf, construction equipment, ground service equipment, skid steers, specialty vehicles and utility tractors / vehicles.

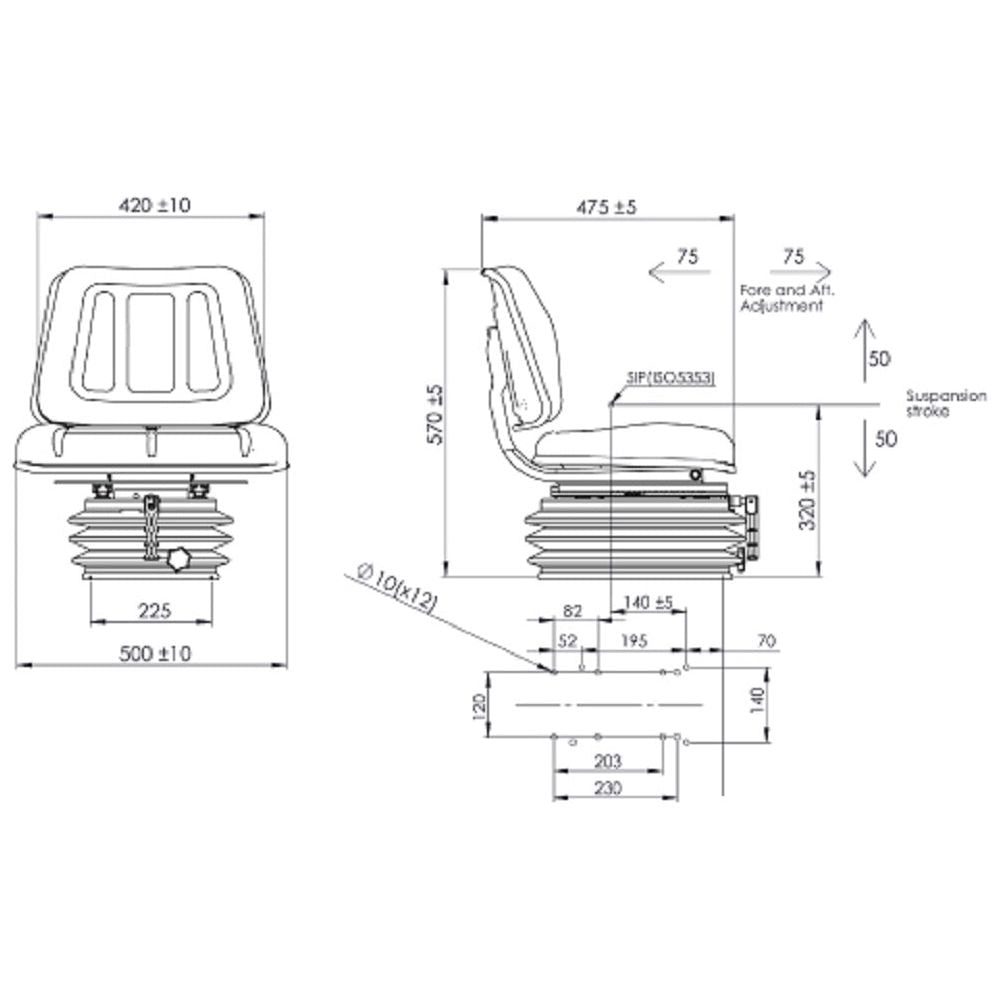

Suspension Stroke 4" / 100mm
Slide Track Fore & Aft Travel Is 6" / 150mm, C to C rail to rail is 6.75"
Weight Adjustment 110 - 330 lbs. / 50 - 150kg
Black long lever is for the slide track
Gray handle lever in the middle is for adjusting the weight
Gray star shaped knob is to adjust suspension up or down
This Seat Does Not Have Mounting Holes On Back For SMV Sign.
No Provisions For Seat belt Attachment

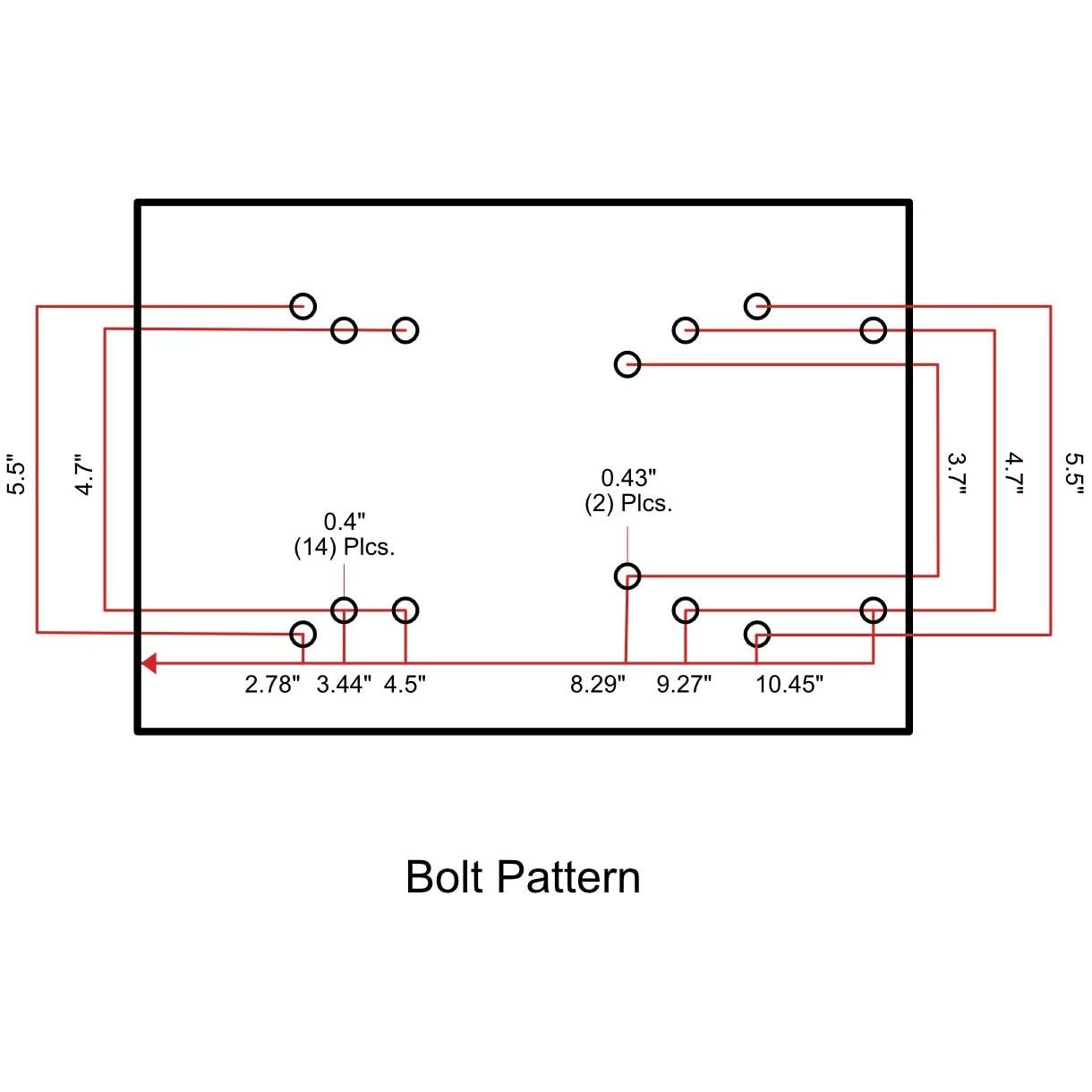

Please note some models may vary and you may have to drill new holes in existing mounting platform to install this seat.
This Seat will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.
Item # MS321
AM135712, AM136801, AM134955, AM106109, AM100163, AM105898, AM106109, AM125736, AM100163, AM102953, AM103284, TCA21044, TCA10005, GY20808, AM108058, AMT576, AM123666, AM136400, AM131704, AM131461, AM132775, AM122871, AM126865, AM140435, AM141105, LVA10029, AM144591, AT63325, SU-230015BK, 230015BK, AT315073, AT327447, AT344971, AT347476, AT361224, KV24167, TCA18026, 792226, 793661 7805 TS1030FLC, T122BL, 116-2943, 1162943, 400328, AM108058, AT63325, AT315073, AT315073, AT327447, AT344971, GG420-32536, GG420-33192, GG420-33358 A-T122BL-A SLP81-40350T, EWANYO5441641 7613 8079 TS1080SS 72-1030 721030 A-SSM100 SSM100-RAP SSM100-IRT A-SSM100-AI, S830952-HYC, S830952 J03
