Heavy Duty Extra Wide Tractor Seat Mechanical Suspension
Heavy Duty Mechanical Seat Suspension for JD, AC, IH, FD, NH, MF, Cat, IR, CIH
For Multiple Applications Including But Not Limited To:
Rugged Construction or Large Tractor Applications with a Wider Seat or where a Heavy-Duty Suspension is Required. Ideal for Articulated Dump Truck, Backhoe Loader, Excavator and Forestry Equipment.
This Heavy-Duty Mechanical Suspension is a top-of-the-line heavy-duty mechanical suspension assembly that offers a boost in vibration reduction for a more comfortable ride in even the most demanding conditions. With the widest suspension base Grammer offers, it provides unmatched stabilization while hard at work. The best candidate for any construction application that requires a heavy-duty, reliable suspension.

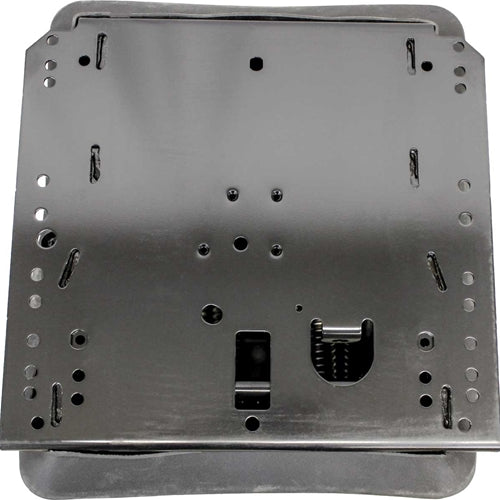

Includes a 15" mounting plate to allow a seat & suspension to be a replacement option for a piece of construction equipment.

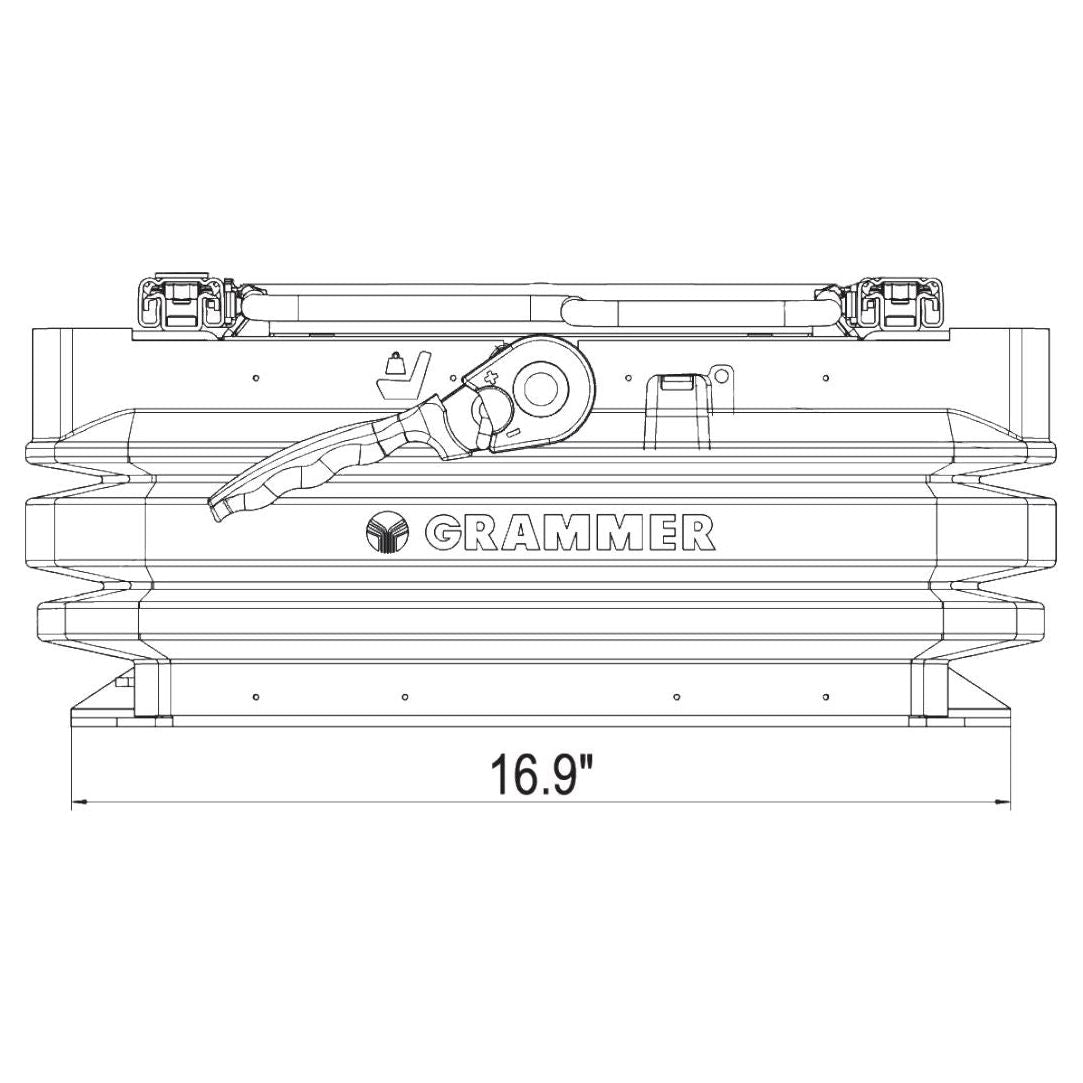

Wider base for more stability and ruggedness
Suspension travel of 4"
Suspension stroke up to 7"

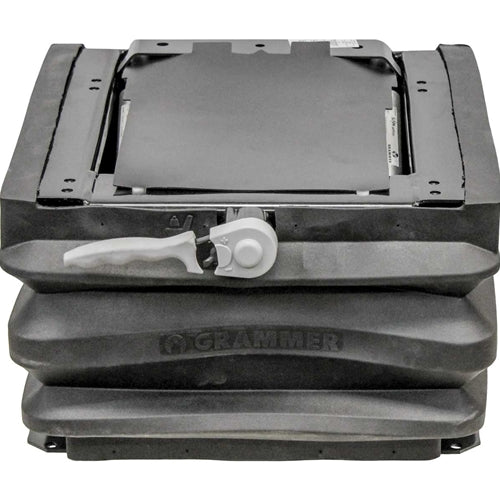

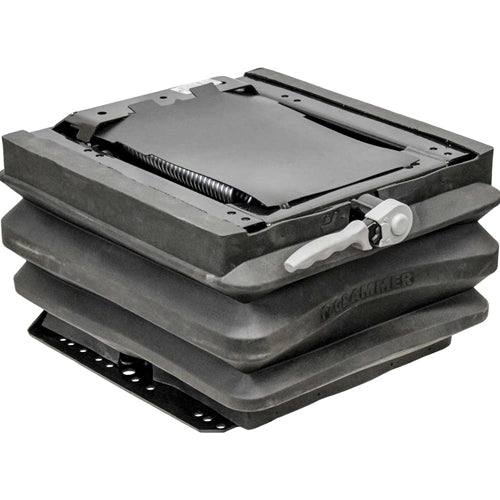

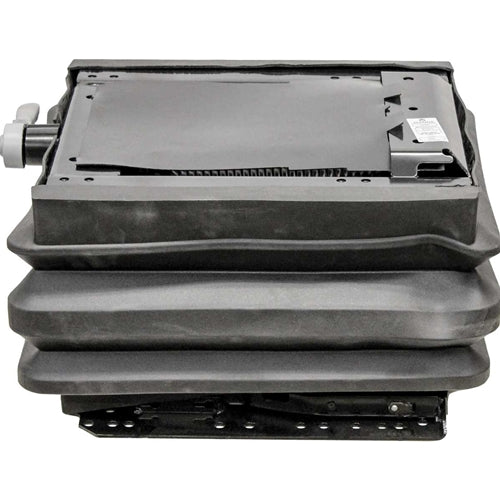

Ratchet handle weight adjustment
Mechanical weight adjustment
110 - 400 lb weight adjustment
Three-position height adjustment
Height adjustment up to 3.1"
8" maximum height
Weight and height indicator

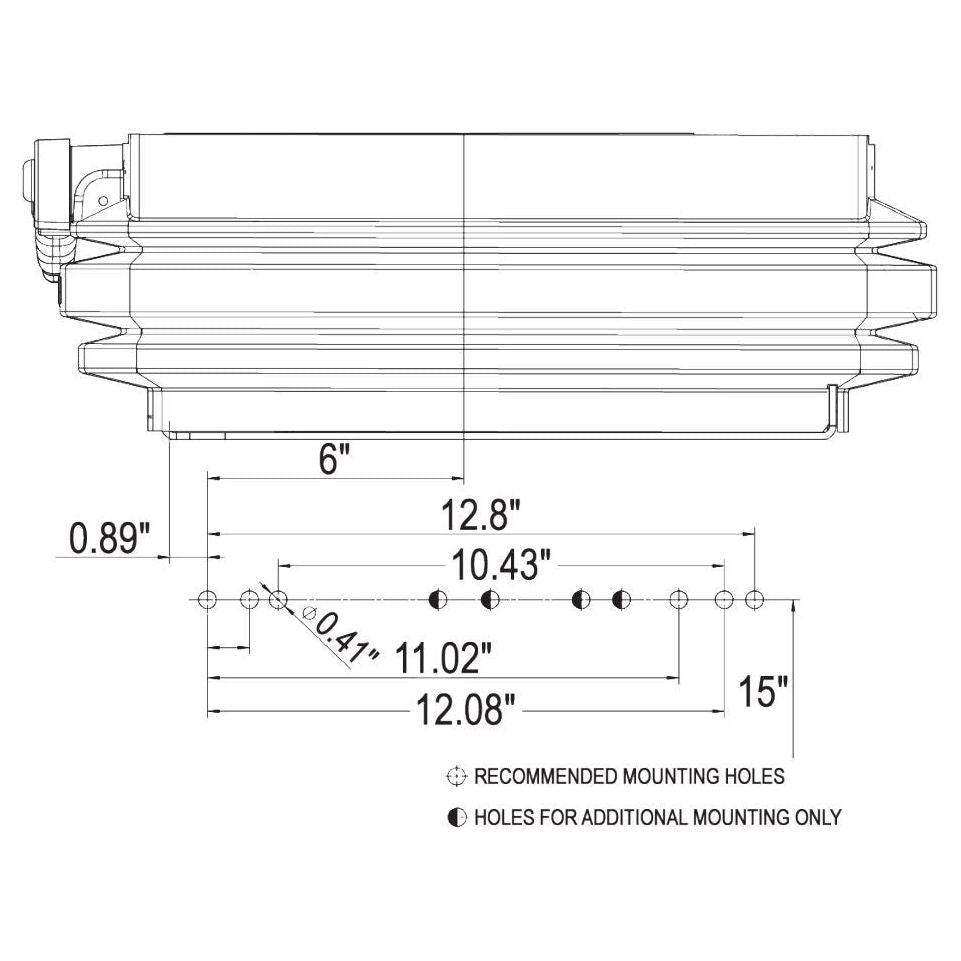

15" mounting plate for application to construction equipment
Includes fore/aft adjustment handle for seat top installed onto suspension

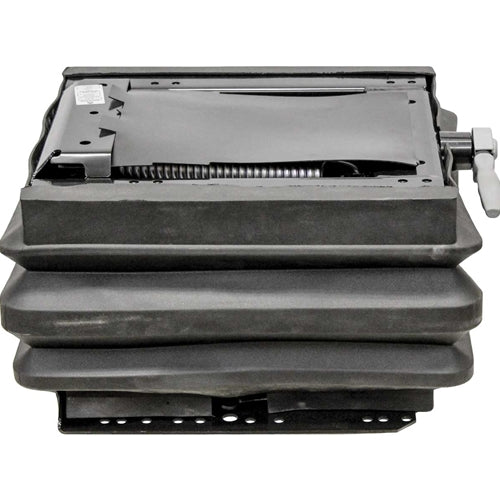

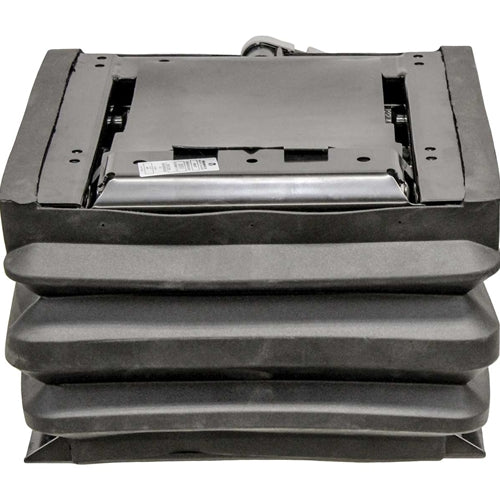

Includes a durable rubber molded suspension cover to keep components free of dirt and dust.
Please note some applications may require to drill new holes in existing mounting platform, or fabricate brackets to install this seat suspension.
This Seat Suspension will fit a lot of models of AGRICULTURAL, TURF, CONSTRUCTION, COMMERCIAL, and INDUSTRIAL EQUIPMENT.
MSG87
